Accuracy Constraint Determination in Fixed-Point System Design

Abstract

Most of digital signal processing applications are specified and designed with floatingpoint arithmetic but are finally implemented using fixed-point architectures. Thus, the design flow requires a floating-point to fixed-point conversion stage which optimizes the implementation cost under execution time and accuracy constraints. This accuracy constraint is linked to the application performances and the determination of this constraint is one of the key issues of the conversion process. In this paper, a method is proposed to determine the accuracy constraint from the application performance. The fixed-point system is modeled with an infinite precision version of the system and a single noise source located at the system output. Then, an iterative approach for optimizing the fixed-point specification under the application performance constraint is defined and detailed. Finally the efficiency of our approach is demonstrated by experiments on an MP3 encoder.

1. Introduction

In digital image and signal processing domains, computing oriented applications are widespread in embedded systems. To satisfy cost and power consumption challenges, fixed-point arithmetic is favored compared to floating-point arithmetic. In fixed-point architectures, memory and bus widths are smaller, leading to a definitively lower cost and power consumption. Moreover, floating-point operators are more complex, having to deal with the exponent and the mantissa, and hence, their area and latency are greater than those of fixed-point operators. Nevertheless, digital signal processing (DSP) algorithms are usually specified and designed with floating-point data types. Therefore, prior to the implementation, a fixed-point conversion is required.

Finite precision computation modifies the application functionalities and degrades the desired performances. Fixed-point conversion must, however, maintain a sufficient level of accuracy. The unavoidable error due to fixed-point arithmetic can be evaluated through analytical- or simulation-based approaches. In our case, the analytical approach has been favored to obtain reasonable optimization times for fixed-point design space exploration. In an analytical approach, the performance degradations are not analyzed directly in the conversion process. An intermediate metric is used to measure the computational accuracy. Thus, the global conversion method is split into two main steps. Firstly, a computational accuracy constraint is determined according to the application performances, and secondly the fixed-point conversion is carried out. The implementation cost is minimized under this accuracy constraint during the fixed-point conversion process. The determination of the computational accuracy constraint is a difficult and open problem and this value cannot be defined directly. This accuracy constraint has to be linked to the quality evaluation and to the performance of the application.

A fixed-point conversion method has been developed for software implementation in [1] and for hardware implementation in [2]. This method is based on an analytical approach to evaluate the fixed-point accuracy. The implementation cost is optimized under an accuracy constraint. In this paper, an approach to determine this accuracy constraint from the application performance requirements is proposed. This module for accuracy constraint determination allows the achieving of a complete fixed-point design flow for which the user only specifies the application performance requirements and not an intermediate metric. The approach proposed in this paper is based on an iterative process to adjust the accuracy constraint. The first value of the accuracy constraint is determined through simulations and depends on the application performance requirements. The fixed-point system behavior is modeled with an infinite precision version of the system and a single noise source located at the system output. The accuracy constraint is thus determined as the maximal value of the noise source power which maintains the desired application quality. Our noise model is valid for rounding quantization law and for systems based on arithmetic operations (addition, subtraction, multiplication, division). This includes LTI and non-LTI systems with or without feedbacks. In summary, the contributions of this paper are (i) a technique to determine the accuracy constraint according to the application performance requirements, (ii) a noise model to estimate the application performances according to the quantization noise level, (iii) an iterative process to adjust the accuracy constraint.

The paper is organized as follows. After the description of the problem and the related works in Section 2, our proposed fixed-point design flow is presented in Section 3. The noise model used to determine the fixed-point accuracy is detailed in Section 4. The case study of an MP3 coder is presented in Section 5. Different experiments and simulations have been conducted to illustrate our approach ability to model quantization effect and to predict performance degradations due to fixed-point arithmetic.

2. Problem Description and Related Works

The aim of fixed-point design is to optimize the fixed-point specification by minimizing the implementation cost. Nevertheless, fixed-point arithmetic introduces an unalterable quantization error which modifies the application functionalities and degrades the desired performance. A minimum computational accuracy must be guaranteed to maintain the application performance. Thus, in the fixed-point conversion process, the fixed-point specification is optimized. The implementation cost is minimized as long as the application performances are fulfilled. In the case of software implementations, the cost corresponds to the execution time, the memory size, or the energy consumption. In the case of hardware implementations, the cost corresponds to the chip area, the critical path delay, or the power consumption.

One of the most critical parts of the conversion process is the evaluation of the degradation of the application performance due to fixed-point arithmetic. This degradation can be evaluated with two kinds of methods corresponding to analytical- and simulation-based approaches. In the simulation-based method, fixed-point simulations are carried out to analyze the application performances [3]. This simulation can be done with system-level design tools such as CoCentric (Synopsys) [4] or Matlab-Simulink (Mathworks) [5]. Also, C++ classes to emulate the fixed-point mechanisms have been developed as in SystemC [4] or Algorithmic C data types [6]. These techniques suffer from a major drawback which is the time required for the simulation [7]. It becomes a severe limitation when these methods are used in the fixed-point specification optimization process where multiple simulations are needed. This optimization process needs to explore the design-space of different data word-lengths. A new fixed-point simulation is required when a fixed-point format is modified. The simulations are made on floating-point machines and the extra-code used to emulate fixed-point mechanisms increases the execution time to between one and two orders of magnitude compared to traditional simulations with floating-point data types [8]. Different techniques [7, 9, 10] have been investigated to reduce this emulation extra-cost. To obtain an accurate estimation of the application performance, a great number of samples must be taken for the simulation. For example, in the digital communication domain, to measure a bit error rate of , at least samples are required. This large number of samples combined with the fixed-point mechanism emulation leads to very long simulation times. For example, in our case, one fixed-point C code simulation of an MP3 coder required 480 seconds. Thus, fixed-point optimization based on simulation leads to too long execution times.

In the case of analytical approaches, a mathematical expression of a metric is determined. Determining an expression of the performance for every kind of application is generally an issue. Thus, the performance degradations are not analyzed directly in the conversion process and an intermediate metric which measures the fixed-point accuracy must be used. This computational accuracy metric can be the quantization error bounds [11], the mean square error [12], or the quantization noise power [10, 13]. In the conversion process, the implementation cost is minimized as long as the fixed-point accuracy metric is greater than the accuracy constraint. The analytical expression of the fixed-point accuracy metric is first determined. Then, in the optimization process, this mathematical expression is evaluated to obtain the accuracy value for a given fixed-point specification. This evaluation is much more rapid than in the case of a simulation-based approach. The determination of the accuracy constraint is a difficult problem and this value cannot be defined directly. This accuracy constraint has to be linked to the quality evaluation and performances of the application.

Most of the existing fixed-point conversion methods based on an analytical approach [1, 11, 13–15] evaluate the output noise level, but they do not predict the application performance degradations due to fixed-point arithmetic. In [12], an analytical expression is proposed to link the bit error rate and the mean square error. Nevertheless, to our knowledge, no general method was proposed to link computational accuracy constraint with any application performance metric. In this paper, a global fixed-point design flow is presented to optimize the fixed-point specification under application performance requirements. A technique to determine the fixed-point accuracy constraint is proposed and the associated noise model is detailed.

3. Proposed Fixed-Point Design Process

3.1. Global Process

A fixed-point datum of bits is made up of an integer part and a fractional part. The number of bits associated with each part does not change during the processing leading to a fixed binary position. Let and be the binary-point position referenced, respectively, from the most significant bit (MSB) and the least significant bit (LSB). The terms and correspond, respectively, to the integer and fractional part word-length. The word-length is equal to the sum of and . The aim of the fixed-point conversion is to determine the number of bits for each part and for each datum.

The global process proposed for designing fixed-point systems under application performance constraints is presented in Figure 1 and detailed in the next sections. The metric used to evaluate the fixed-point accuracy is the output quantization noise power. Let be the system output quantization noise. The noise power is also called in this paper noise level and is represented by the term . The accuracy constraint used for the fixed-point conversion process corresponds to the maximal noise level under which the application performance is maintained. The challenge is to establish a link between the accuracy constraint and the desired application performances . These application performances must be predicted according to the noise level . The global fixed-point design flow is made-up of three stages and an iterative process is used to adjust the accuracy constraint used for the fixed-point conversion. These three stages are detailed in the following sections.

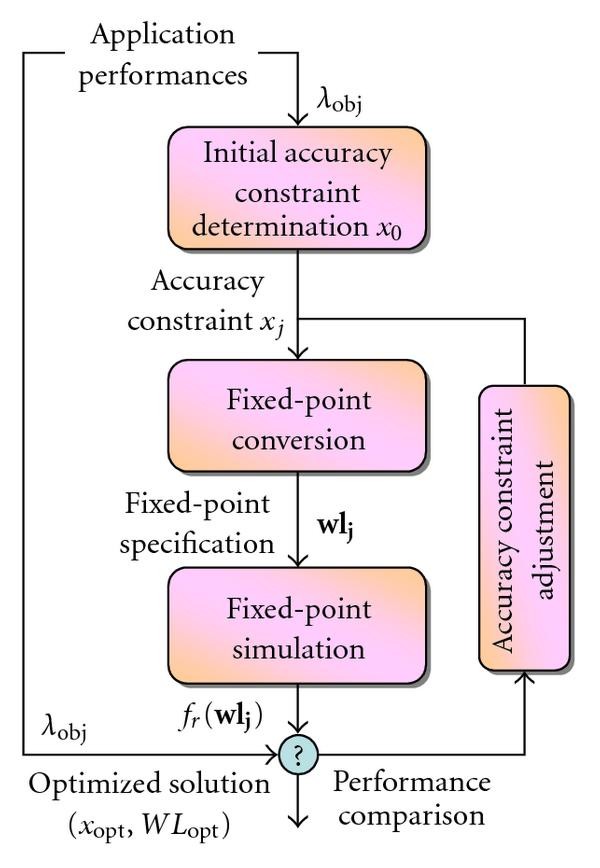

Figure 1
figure 1

Global fixed-point design process. This design flow is made-up of three stages. An iterative process is used to adjust the accuracy constraint for the fixed-point conversion.

3.2. Accuracy Constraint Determination

The first step corresponds to the initial accuracy constraint determination which is the maximal value of the noise level satisfying the performance objective . For example, in a digital communication receiver, the maximal quantization noise level is determined according to the desired bit error rate.

First, a prediction of the application performance is performed with the technique presented below. Let be the function representing the predicted performances according to the noise level . To determine the initial accuracy constraint value (), equation is solved graphically, and is the solution of this equation.

3.2.1. Performance Prediction

To define the initial value of the accuracy constraint (), the application performance is predicted according to the noise level . The fixed-point system is modeled by the infinite precision version of the system and a single noise source located at the system output as shown in Figure 2. This noise source models all the quantization noise sources inside the fixed-point system. The system floating-point version is used and the noise is added to the output. The noise model used for is presented in Section 4. Different noise levels for the noise source are tested to measure the application performance and to obtain the predicted performance function according to the noise level . The accuracy constraint corresponds to the maximal value of the noise level which allows the maintenance of the desired application performance.

Figure 2
figure 2

Accuracy constraint determination. The fixed-point system is modeled by the infinite precision version of the system and a single noise source located at the system output.

Most of the time, the floating-point simulation has already been developed during the application design step, and the application output samples can be used directly. Therefore, the time required for exploring the noise power values is significantly reduced and becomes negligible with regard to the global implementation flow. Nevertheless, this technique cannot be applied for systems where the decision on the output is used inside the system like, for example, decision-feedback equalization. In this case, a new floating-point simulation is required for each noise level which is tested.

3.3. Fixed-Point Conversion Process

The second step corresponds to the fixed-point conversion. The goal is to optimize the application fixed-point specification under the accuracy constraint . The approaches presented in [1] for software implementation and in [2] for hardware implementation are used. This fixed-point conversion can be divided into two main modules. The flow diagram used for this conversion is shown in Figure 3.

Figure 3
figure 3

Fixed-point conversion process. For each datum, the number of bits for the integer part is determined and the fractional part word-length is optimized.

The first part corresponds to the determination of the integer part word-length of each datum. The number of bits for this integer part must allow the representation of all the values taken by the data and is obtained from the data bound values. Thus, firstly the dynamic range is evaluated for each datum. Then, these results are used to determine, for each data, the binary-point position which minimizes the integer part word-length and which avoids overflow. Moreover, scaling operations are inserted in the application to adapt the fixed-point format of a datum to its dynamic range or to align the binary-point of the addition inputs.

The second part corresponds to the determination of the fractional part word-length. The number of bits for this fractional part defines the computational accuracy. Thus, the data word-lengths are optimized. The implementation cost is minimized under the accuracy constraint. Let be an -size vector including the word-length of the application data. Let be the implementation cost and let be the computational accuracy obtained for the word-length vector . The implementation cost is minimized under the accuracy constraint :

(1)

The vector is the optimized fixed-point specification obtained for the constraint value at iteration of the process.

The data word-length determination corresponds to an optimization problem where the implementation cost and the application accuracy must be evaluated. The major challenge is to evaluate the fixed-point accuracy. To obtain reasonable optimization times, analytical approaches to evaluate the accuracy have been favored. The computational accuracy is evaluated using the quantization noise power. The mathematical expression of this noise power is computed for systems based on arithmetic operations with the technique presented in [16]. This mathematical expression is determined only once and is used for the different iterations of the fixed-point conversion process and for the different iterations of the global design flow.

3.4. Performance Evaluation and Accuracy Constraint Adjustment

The third step corresponds to the evaluation of the real application performance. The optimized fixed-point specification is simulated and the application performance is measured. The measured performances and the objective value are compared and, if (2) is not satisfied, the accuracy constraint is adjusted and a new iteration is performed:

(2)

where the term is the tolerance on the objective value.

To modify the accuracy constraint value, two measurements are used. Nevertheless, in the first iteration, only the point is available. To obtain a second point, all the data word-lengths are increased (or decreased) by bits. In this case, as demonstrated in appendix the noise level is increased (or decreased) by  dB. The number of bits is chosen as the minimal value respecting the following inequality:

(3)

The choice to increment or decrement depends on the slope sign of and the sign of the difference between and . For the next iterations, two or more measured points are available. The two consecutive points of abscissa and such as are selected and let be the linear equation linking the two points and . The adjusted accuracy constraint used for the next iteration is defined such as . The adjustment process is illustrated in Section 5.3 through an example.

4. Noise Model

4.1. Noise Model Description

4.1.1. Quantization Noise Model

The use of fixed-point arithmetic introduces an unavoidable quantization error when a signal is quantified. A common model for signal quantization has been proposed by Widrow in [17] and refined in [18]. The quantization of a signal is modeled by the sum of this signal and a random variable , which represents the quantization noise. This additive noise is a uniformly distributed white noise that is uncorrelated with the signal, and independent from the other quantization noises. In this study, the round-off method is used rather than truncation. For convergent rounding, the quantization leads to an error with a zero mean. For classical rounding, the mean can be assumed to be null as soon as several bits (more than 3 bits) are eliminated in the quantization process. The expression of the statistical parameters of the noise sources can be found in [16]. If is the quantization step (accuracy), the noise values are in the interval .

4.1.2. Noise Model for Fixed-Point System

The noise model for fixed-point systems presented in [16] is used. The output quantization noise is the contribution of the different noise sources. Each noise source is due to the elimination of some bits during a cast operation. From the propagation model presented in [16], for each arithmetic operation it can be shown that the operation output noise is a weighted sum of the input noises associated with each operation input. The weights of the sum do not include noise terms, because the product of the noise terms can be neglected. Thus, in the case of systems based on arithmetic operations, the expression of the output quantization noise is as follows:

(4)

where the term represents the impulse response of the system having as output and as input. In the case of linear time invariant (LTI) systems, the different terms are constant. In the case of non-LTI systems the terms are time varying. In this context, two extreme cases can be distinguished. In the first case, a quantization noise predominates in terms of variance compared to the other noise sources. A typical example is an extensive reduction of the number of bits at the system output compared to the other fixed-point formats. In this case, the level of this output quantization noise exceeds the other noise source levels. Thus, the probability density function of the output quantization noise is very close to that of the predominant noise source and can be assimilated to a uniform distribution. In the second case, an important number of independent noise sources have similar statistical parameters and no noise source predominates. All the noise sources are uniformly distributed and independent of each other. By using the central limit theorem, the sum of the different noise sources can be modeled by a centered normally distributed noise.

From these two extreme cases, an intuitive way to model the output quantization noises of a complex system is to use a noise which is the weighted sum of a Gaussian and a uniform noise. Let be the probability density function of the noise . Let be a normally distributed noise with a mean and variance equal, respectively, to 0 and 1. Let be a uniformly distributed noise in the interval . The noise is defined with the following expression:

(5)

The weight is set in the interval and allows the representation of the different intermediate cases between the two extreme cases presented above. The weight fixes the global noise variance.

4.1.3. Choice of Noise Model Parameters

The noise is assumed to be white noise. Nevertheless, the spectral density function of the real quantization noise depends on the system and most of the time is not white. If the application performance is sensitive to the noise spectral characteristic, this assumption will degrade the performance prediction. Nevertheless, the imperfections of the noise model are compensated by the iteration process which adapts the accuracy constraint. The effects of the noise model imperfections increase in the number of iterations required to converge to the optimized solution.

To take account of the noise spectral characteristics, the initial accuracy constraint can be adjusted and determined in a two-step process. The accuracy constraint is determined firstly assuming that the noise is white. Then, the fixed-point conversion is carried out and the fixed-point specification is simulated. The spectral characteristics of the real output quantization noise are measured. Afterwards, the accuracy constraint is adjusted and determined a second time assuming that the noise has the same spectral characteristics as the real quantization noise .

Like for the spectral characteristics, the weight is set to an arbitrary value depending of the kind of implementation. Then, after the first iteration, the value is adjusted by using the measured value obtained from the real output quantization noise .

In most of the processors the architecture is based on a double precision computation. Inside the processing unit, most of the computations are carried out without loss of information and truncation occurs when the data are stored in memory. This approach tends to obtain a predominant noise source at the system output. Thus, for software implementation the weight is fixed to 1. For hardware implementation the optimization of the operator word-length leads to a fixed-point system where no noise source is predominant. The optimization distributes the noise to each operation. Thus, for hardware implementation the weight is fixed to 0.

4.2. Validation of the Proposed Model

4.2.1. Validation Methodology

The aim of this section is to analyze the accuracy of our model with real quantization noises. The real noises are obtained through simulations. The output quantization noise is the difference between the system outputs obtained with a fixed-point and a floating-point simulation. The floating-point simulation which uses double-precision types is considered to be the reference. Indeed, in this case, the error due to the floating-point arithmetic is definitely less than the error due to the fixed-point arithmetic. Thus, the floating-point arithmetic errors can be neglected.

Our model is valid if a balance weight can be found to model the real noise probability density function with (5). The accuracy of our model with real noises is analyzed with the goodness-of-fit test. This test is a statistical tool which can be used to determine if a real quantization noise follows a chosen probability density function [19]. Let be the hypothesis that follows the probability density function . The test is based on the distance between the two probability density functions. If is the observed frequency for interval , is the expected frequency for and the number of interval , the statistical test is:

(6)

This statistical test follows the distribution with degrees of freedom. Therefore, if the distance is higher than the threshold , then the hypothesis ( follows the probability density function ) is rejected. The significance level of the test is the probability of rejecting when the hypothesis is true. Choosing a certain value for this level will set the threshold distance for the test. According to [20], the significance level should be in .

Concerning the observed noise, there is no a priori knowledge of the balance coefficient . Thus, the test has to be used collectively with a searching algorithm. This algorithm finds the weight for which the fits the best to the noise. Let be the optimized value which minimizes the term from (6), then:

(7)

The real quantization noise can be modeled with (5) if the optimized value is lower than the threshold .

4.2.2. FIR Filter Example

The first system on which the before-mentioned test has been performed is a 32-tap FIR filter. The filter output is obtained from the following expression:

(8)

where is the filter input and the filter coefficients.

The signal flow graph of one cell is presented in Figure 4. To simplify the presentation, the integer part word-length for the multiplication output and the input and output of the addition are set to be equal. Thus, no scaling operation is necessary to align the binary point positions at the adder input. This simplification has no influence on the generality of the results.

Figure 4
figure 4

Signal flow graph for one FIR filter tap.

The word-lengths of the input signal () and of the coefficient () are equal to 16 bits. If no bit is eliminated during the multiplication, the multiplier output word-length is equal to 32 bits. The adder input and output word-length are equal to . At the filter output, the data is stored in memory with a word-length equal to 16 bits.

Two kinds of quantization noise sources can be located in the filter. A noise source can be located at each multiplier output if bits are eliminated between the multiplication and the addition. The number of eliminated bits is obtained with the following expression:

(9)

A noise source is located at the filter output if bits are eliminated when the addition output is stored in memory. The number of eliminated bits is obtained with the following expression:

(10)

The adder word-length is varying between 16 and 32 bits, while the output of the system is always quantized on 16 bits.

The probability density function of the filter output quantization noise is shown in Figure 5 for different values of . The noise is uniform when one source is prevailing (the adder is on 32 bits). As long as the influence of the sources at the output of the multiplier is increasing (the length is decreasing), the distribution of the output noise tends to become Gaussian. These simple visual observations can be confirmed using the -searching algorithm. The change of the optimized value for different adder word-lengths, varying from 16 to 32 bits, is shown in Figure 6. When the output of the multiplier is 16 or 17 bits, , the sources are numerous. Their influence on the system output leads to a Gaussian noise. As the length of the multiplier increases, also grows and eventually tends to 1. When is greater than 26 bits, the variance of the noise sources located at each multiplier output is insignificant compared to the variance of the noise source located at the filter output. Thus, this latter is prevailing and its influence on the output signal is a uniform white noise. In this case, the boundary values of the noise are .

Figure 5
figure 5

Probability density function of the 32-tap FIR filter output quantization noise measured for different adder word-lengths .

Figure 6
figure 6

Balance weight found for different adder word-lengths . This weight is obtained with the -search algorithm presented in Section 4.2.1.

4.2.3. Benchmarks

To validate our noise model, different DSP application benchmarks have been tested and the adequacy between our model and real noises has been measured. For each application, different output noises have been obtained by evaluating several fixed-point specifications and different application parameters. The number of output noises analyzed for one application is defined through the term . For these different applications based on arithmetic operations, the input and the output word-length are fixed to 16 bits. The different fixed-point specifications are obtained by modifying the adder input and output word-lengths. Eight values are tested for the adder: .

The results are shown in Table 1 for two significance levels corresponding to the boundary values (0.05 and 0.001). For each application, the number of real noise which can be modeled with our noise model is measured. The adequacy between our model and real noises is measured with the metric defined with the following expression:

(11)
Table 1 Adequacy between our model and real noises for different DSP applications.

This metric corresponds to the ratio of output noises for which a weight can be found to model the noise probability density function with (5).

The different applications used to test our approach are presented in this paragraph. A fast Fourier transform (FFT) has been performed on vectors made-up of 16 or 32 samples. Linear time-invariant (LTI) recursive systems have been tested through an eight-order infinite impulse filter (IIR). This filter is implemented with a cascaded form based on four second order cells. For this cascaded eight-order IIR filter, 24 permutations of the second-order cells can be tested leading to very different output noise characteristics [21]. Three forms have been tested corresponding to Direct-form I, Direct-Form II and Transposed-Form. An adaptive filter based on the affine projection algorithm (APA) structure [22] has been tested. This filter is made-up of eight taps and the observation vector length is equal to five. A nonlinear nonrecursive filter has been tested using a second-order Volterra filter. Our benchmarks do not include non linear systems with memory and thus do not validate this specific class of algorithms.

More complex applications have been studied through a WCDMA receiver and an MP3 coder. The MP3 coder is presented in Section 5.1. For the third generation mobile communication systems based on the WCDMA technique, the receiver is mainly made up of an FIR receiving filter and a rake receiver including synchronization mechanisms [23]. The rake receiver is made-up of three parts corresponding to the transmission channel estimation, synchronization and symbol decoding. The synchronization of the code and the received signal is realized with a delay-locked loop (DLL). The noises are observed at the output of the symbol decoding part.

The results from Table 1 show that our noise model can be applied to most of the real noises obtained for different applications. For some applications, like FFT, FIR, WCDMA receiver and the Volterra filter, a balance coefficient can always be found. These four applications are nonrecursive and the FFT, FIR, WCDMA receiver are LTI systems.

For the eight-order infinite impulse filter, almost all the noises (97%–100%) can be modeled with our approach. For these filters, 90% of the output quantization noise are modeled with a balance coefficient equal to 0. Thus, the output noise is a purely normally distributed noise. In LTI system, the output noise due to the noise corresponds to the convolution of the noise with . This term is the impulse response of the transfer function between the noise source and the output. Thus, the output noise is the weighted sum of the delayed version of the noise . The noise is a uniformly distributed white noise, thus the delayed versions of the noise are uncorrelated. The samples are uncorrelated but are not independent and thus the central limit theorem cannot be applied directly. Even if only one noise source is located in the filter, the output noise is a sum of noncorrelated noises and this output noise tends to have a Gaussian distribution. For the MP3 coder, when the level is 0.001 the test is successful about 87% of the time (78% when is 0.05).

For the different applications, the metric is close to 100%. These results show that our model is suitable to model the output quantization noise of fixed-point systems.

5. Case Study: MP3 Coder

The application used to illustrate our approach and to underline its efficiency comes from audio compression and corresponds to an MP3 coder. First, the application and the associated quality criteria are briefly described. Then, the ability of our noise model to predict application performance is evaluated. Finally, a case study to obtain an optimized fixed-point specification which ensures the desired performances is detailed.

5.1. Application Presentation

5.1.1. MP3 Coder Description

The MP3 compression, corresponding to MPEG-1 Audio Layer 3, is a popular digital audio encoding which allows efficient audio data compression. It must maintain a reproduction quality close to the original uncompressed audio. This compression technique relies on a psychoacoustic model which analyzes the audio signal according to how human beings perceive a sound. This step allows the formation of some signal to noise masks which indicate where noise can be added without being heard. The MP3 encoder structure is shown in Figure 7. The signal to be compressed is analyzed using a polyphase filter which divides the signal into 32 equal-width frequency bands. The modified discrete cosine transform (MDCT) further decomposes the signal into 576 subbands to produce the signal which will actually be quantized. Then, the quantization loop allocates different accuracies to the frequency bands according to the signal to noise mask. The processed signal is coded using Huffman code [24]. The MP3 coder can be divided into two signal flows. The one composed from the polyphase filter and the MCDT and the one composed from the FFT and the psychoacoustic model. The fixed-point conversion of the second signal flow has low influence on compression quality and thus, in this paper, the results are presented only for the first signal flow.

Figure 7
figure 7

MP3 encoder structure.

The BLADE [25] coder has been used with a 192 Kbits/s constant bit rate. This coder leads to a good quality compression with floating-point data types. A sample group of audio data has been defined for the experiments. This group contains various kinds of sounds, where each can lead to different problems during encoding (harmonic purity, high or low dynamic range, ). Ten different input tracks have been selected and tested.

5.1.2. Quality Criteria

In the case of an MP3 coder, the output noise power metric cannot be used directly as a compression quality criterion. The compression is indeed based on adding quantization noises where it is imperceptible, or at least barely audible. The compression quality has been tested using EAQUAL [26] which stands for evaluation of audio quality. It is an objective measurement tool very similar to the ITU-R recommendation BS.1387 based on PEAQ technique. This has to be used because listening tests are impossible to formalize. In EAQUAL, the degradations due to compression are measured with the objective degradation grade (ODG) metric. This metric varies from 0 (no degradation) to −4 (inaudible). The level of −1 is the threshold beyond the degradation becomes annoying for ears. This ODG is used to measure the degradation due to fixed-point computation. Thus for the fixed-point design, the aim is to obtain the fixed-point specification of the coder which minimizes the implementation cost and maintains an ODG lower or equal to −1 for the different audio tracks of the sample group.

5.2. Performance Prediction

The efficiency of our approach depends on the quality of the noise model used to determine the accuracy constraint. To validate this latter, its ability to model real quantization noises and its capability to predict the application performance according to the quantization noise level are analyzed through experiments.

Our model capability to predict application performance according to the quantization noise level has been analyzed. The real and the predicted performances are compared for different noise levels . The application performance prediction is obtained with our model as described in Figure 2. The random signal modeling the output quantization noise with a noise level of is added to the infinite precision system output. The real performances are measured with a fixed-point simulation of the application. This fixed-point specification is obtained with a fixed-point conversion having as an accuracy constraint. For this audio compression application, the evolution of the predicted () and the real () objective degradation grade (ODG) is given in Figure 8(a). These performances have been measured for different quantization noise levels included in the range [−108 dB; −88 dB].

Figure 8
figure 8

(a) Predicted and the real objective degradation grade (ODG) for the MP3 coder. (b) Zoom on the range [−105 dB, −99 dB], the point involved in each iteration are given.

The predicted and real performances are very close except for two noise levels equal to −98.5 dB and −88 dB. In these cases, the difference between the two functions and is, respectively, equal to 0.2 and 0.4. In the other cases, the difference is less than 0.1. It must be underlined that when the ODG is lower than −1.5, the ODG evolution slope is higher, and a slight difference in the noise level leads to a great difference on the ODG. The case where only the polyphase filter is considered to use fixed-point data type (the MDCT is computed with floating-point data-types) has been tested. The difference between the two functions and is less than 0.13. Thus, our approach allows the accurate prediction of the application performance.

5.3. Fixed-Point Optimization under Performance Constraint

In this section, the design process to obtain an optimized fixed-point specification which guarantees a given level of performances is detailed. The ODG objective is fixed to −1 corresponding to the acceptable degradation limit.

First, to determine the initial value of the accuracy constraint, a prediction of the application performance is made. This initial value determination corresponds to the first stage of the design flow presented in Figure 1. The function is determined for different noise levels with a balance coefficient varying from 0 to 1. Two results can be underlined. Firstly, the influence of the balance coefficient has been tested and is relatively low. Between the extreme values of , the ODG variation is on average less than 0.1. In these experiments, a hardware implementation is under consideration, thus the balance coefficient is fixed to 0.

Secondly, the ODG change is strongly linked to the kind of input tracks used for the compression.

In these experiments, 10 different input tracks have been tested. To obtain an ODG equal to −1, a difference of 33 dB is obtained between the minimal and the maximal ODG. These results underline the necessity to have inputs which are representative of the different audio tracks encountered in the real world. In the rest of the study, the audio sample which leads to the minimal ODG is used as a reference. The results obtained in this case are shown in Figure 8(a) and a zoom is given in Figure 8(b).

To determine the initial value of the accuracy constraint, equation is graphically solved. The noise level is equal to −99.35 dB. is used as an accuracy constraint for the fixed-point conversion. This conversion is the second stage of the design flow (see Figure 1). The aim is to find the fixed-point specification which minimizes the implementation cost and maintains a noise level lower than . After the conversion, the fixed-point specification is simulated to measure the performance. It corresponds to the third stage of the design flow (see Figure 1). The measured performance is equal to −1.2. To obtain the second point of abscissa, all the data word-lengths are increased by one bit and the measured performance is equal to −0.77. The accuracy constraint for the next iteration is obtained by solving . The function is the linear equation linking the points and . The obtained value is equal to −102.2 dB. The process is iterated and the following accuracy constraints are equal to −101 dB and −100,7 dB. The values obtained for the different iterations are presented in Table 2. For this example, six iterations are needed to obtain an optimized fixed-point specification which leads to an ODG equal to −0.99. Only, three iterations are needed to obtain an ODG of −0.95.

Table 2 Description of the values obtained for the different iterations . The term corresponds to the accuracy constraint for the fixed-point conversion. The term is the measured performance obtained after the fixed-point conversion.

5.3.1. Execution Time

For our approach, the execution time of the iterative process has been measured. First, the initial accuracy constraint is determined. The floating-point simulations have already been carried out in the algorithm design process and this floating-point simulation time is not considered. For each tested noise level, the noise is added to the MDCT output and then the ODG is computed. The global execution time of this first stage is equal to 420 seconds. This stage is carried out only once.

For the fixed-point conversion, the analytical model for noise level estimation is determined at the first iteration. This execution time of this process is equal to 120 seconds. It takes a small amount of time but it is done only once. Then, this model is used in the process of fixed-point optimization and the fixed-point accuracy is computed instantaneously by evaluating a mathematical expression. For this example, each fixed-point conversion takes only 0.7 seconds due to the analytical approach.

In this fixed-point design process, most of the time is spent in the fixed-point simulation (stage 3). This simulation is carried out with C++ code with optimized fixed-point data types. For this example, the execution time of each fixed-point simulation is equal to 480 seconds. But, only one fixed-point simulation is required by iteration and a small number of iterations are needed.

The expression of the global execution time for our approach based on analytical approach for fixed-point conversion is as follows:

(12)

where represents the number of iterations required to obtain the optimized fixed-point specification for a given ODG constraint. In this example, six iterations are needed to obtain an optimized fixed-point specification which leads to an ODG equal to −0.99 and three iterations are needed to obtain an ODG of −0.95. Thus, the global execution time is equal to 49 minutes for an ODG of −0.99 and 33 minutes for an ODG of −0.95.

A classical fixed-point conversion approach based on simulations has also been tested to compare with our approach. The same code as in our proposed approach is used to simulate the application. For this approach most of the time is consumed by the fixed-point simulation used to evaluate the application performances. Thus, the expression of the global execution time for this approach based on simulation is as follows:

(13)

where is the number of iterations of the optimization process based on simulation.

An optimization algorithm based on bits procedure [27] is used. This algorithm allows the limitation of the iteration number in the optimization process. The number of variables in the optimization process has been restricted to 9 to limit the fixed-point design search space. In this case, the number of iterations is equal to 388. Given that each fixed-point simulation requires 480 seconds, the global execution becomes huge and is equal to 51 hours.

In our case, the optimization time is definitively lower. For this real application, a fixed-point simulation requires several minutes. For this example, the analytical approach reduces the execution time by a factor 63. Moreover, the fixed-point design space is very large and it cannot be explored with classical techniques based on fixed-point simulations.

6. Conclusion

In embedded systems, fixed-point arithmetic is favored but the application performances are reduced due to finite precision computation. During the fixed-point optimization process, the performance degradations are not analyzed directly during the conversion. An intermediate metric is used to measure the computational accuracy. In this paper, a technique to determine the accuracy constraint associated with a global noise model has been proposed. The probability density function of the noise model has been detailed and the choice of the parameters has been discussed. The different experiments show that our model predicts sufficiently accurately the application performances according to the noise level. The technique proposed to determine the accuracy constraint and the iterative process used to adjust this constraint allow the obtention of an optimized fixed-point specification guaranteeing minimum performance. The optimization time is definitively lower and has been divided by factor of 63 compared to the simulation based approach. Our future work is focused on the case of quantization by truncation.

References

  1. Menard D, Chillet D, Sentieys O: Floating-to-fixed-point conversion for digital signal processors. EURASIP Journal on Applied Signal Processing 2006, 2006:-19.

    Google Scholar

  2. Herve N, Menard D, Sentieys O: Data wordlength optimization for FPGA synthesis. Proceedings of the IEEE Workshop on Signal Processing Systems (SIPS '05), November 2005, Athens, Grece 623-628.

    Google Scholar

  3. Belanovic P, Rupp M: Automated floating-point to fixed-point conversion with the fixify environment. Proceedings of the 16th IEEE International Workshop on Rapid System Prototyping (RSP '05), June 2005, Montreal, Canada 172-178.

    Chapter  Google Scholar

  4. Berens F, Naser N: Algorithm to System-on-Chip Design Flow that Leverages System Studio and SystemC 2.0.1. Synopsys Inc., March 2004

    Google Scholar

  5. Mathworks : Fixed-Point Blockset User's Guide (ver. 2.0). 2001.

    Google Scholar

  6. Mentor Graphics : Algorithmic C Data Types. Mentor Graphics, version 1.2 edition, May 2007

  7. De Coster L, Adé M, Lauwereins R, Peperstraete J: Code generation for compiled bit-true simulation of DSP applications. Proceedings of the 11th IEEE International Symposium on System Synthesis (ISSS '98), December 1998, Hsinchu, Taiwan 9-14.

    Chapter  Google Scholar

  8. Keding H, Willems M, Coors M, Meyr H: FRIDGE: a fixed-point design and simulation environment. Proceedings of the Conference on Design, Automation and Test in Europe (DATE '98), February 1998, Paris, France 429-435.

    Chapter  Google Scholar

  9. Keding H, Coors M, Luthje O, Meyr H: Fast bit-true simulation. Proceedings of the 38th Design Automation Conference (DAC '01), June 2001, Las Vegas, Nev, USA 708-713.

    Google Scholar

  10. Kim S, Kum K-I, Sung W: Fixed-point optimization utility for C and C++ based digital signal processing programs. IEEE Transactions on Circuits and Systems II 1998,45(11):1455-1464. 10.1109/82.735357

    Article  Google Scholar

  11. Özer E, Nisbet AP, Gregg D: Stochastic bit-width approximation using extreme value theory for customizable processors. Trinity College, Dublin, Ireland; October 2003.

    Google Scholar

  12. Shi C, Brodersen RW: Floating-point to fixed-point conversion with decision errors due to quantization. Proceedings of the IEEE International Conference on Acoustics, Speech, and Signal Processing (ICASSP '04), May 2004, Montreal, Canada 5: 41-44.

    Google Scholar

  13. Keding H, Hurtgen F, Willems M, Coors M: Transformation of floating-point into fixed-point algorithms by interpolation applying a statistical approach. Proceeding of the 9th International Conference on Signal Processing Applications and Technology (ICSPAT '98), September 1998, Toronto, Canada

    Google Scholar

  14. Constantinides GA: Perturbation analysis for word-length optimization. Proceedings of the 11th Annual IEEE Symposium on Field-Programmable Custom Computing Machines (FCCM '03), April 2003, Napa, Calif, USA 81-90.

    Google Scholar

  15. Lopez JA, Caffarena G, Carreras C, Nieto-Taladriz O: Fast and accurate computation of the roundoff noise of linear time-invariant systems. IET Circuits, Devices & Systems 2008,2(4):393-408. 10.1049/iet-cds:20070198

    Article  Google Scholar

  16. Rocher R, Menard D, Sentieys O, Scalart P: Analytical accuracy evaluation of fixed-point systems. Proceedings of the 15th European Signal Processing Conference (EUSIPCO '07), September 2007, Poznań, Poland

    Google Scholar

  17. Widrow B: Statistical analysis of amplitude quantized sampled-data systems. Transactions of the American Institute of Electrical Engineers–Part II 1960, 79: 555-568.

    Google Scholar

  18. Sripad A, Snyder D: A necessary and sufficient condition for quantization errors to be uniform and white. IEEE Transactions on Acoustics, Speech and Signal Processing 1977,25(5):442-448. 10.1109/TASSP.1977.1162977

    Article  MATH  Google Scholar

  19. Knuth DE: The Art of Computer Programming, Addison-Wesley Series in Computer Science and Information. 2nd edition. Addison-Wesley, Boston, Mass, USA; 1978.

    Google Scholar

  20. Menezes AJ, van Oorschot PC, Vanstone SA: Handbook of Applied Cryptography. CRC Press, Boca Raton, Fla, USA; 1996.

    Book  Google Scholar

  21. Rocher R, Menard D, Herve N, Sentieys O: Fixed-point configurable hardware components. EURASIP Journal on Embedded Systems 2006, 2006:-13.

    Google Scholar

  22. Ozeki K, Umeda T: An adaptive filtering algorithm using an orthogonal projection to an affine subspace and its properties. Electronics and Communications in Japan 1984,67(5):19-27.

    Article  MathSciNet  Google Scholar

  23. Ojanperä T, Prasad R: WCDMA: Towards IP Mobility and Mobile Internet, Artech House Universal Personal Communications Series. Artech House, Boston, Mass, USA; 2002.

    Google Scholar

  24. Pan D: A tutorial on MPEG/audio compression. IEEE MultiMedia 1995,2(2):60-74. 10.1109/93.388209

    Article  Google Scholar

  25. Jansson T: BladeEnc MP3 encoder. 2002

    Google Scholar

  26. Lerch A: EAQUAL–Evaluation of Audio QUALity. Software repository: January 2002, http://sourceforge.net/projects/eaqual

    Google Scholar

  27. Cantin M-A, Savaria Y, Lavoie P: A comparison of automatic word length optimization procedures. Proceedings of the IEEE International Symposium on Circuits and Systems (ISCAS '02), May 2002, Scottsdale, Ariz, USA 2: 612-615.

    Google Scholar

Download references

Author information

Authors and Affiliations

Authors

Corresponding author

Correspondence to D Menard.

Appendix

This section demonstrates the increase of of the noise power when all fixed-point data formats are increased of bits. The output noise is given by the expression (4).The output noise power is presented in [16]. In our case, the rounding quantization mode is considered. Thus, noise means are equal to zero and the output noise power is given by the following relation:

(A.1)
with the variance of the noise source . The terms are constants computed with impulse response terms and independent of the fixed-point formats [16]:
(A.2)
with the quantization step of the data after the quantization process which generates the noise . The term is the number of bits that have been eliminated by the quantization process.Let us consider that bits are added to each fixed-point data format. In that case, the new quantization step is equal to:
(A.3)
Thus, the new noise variance is given by:
(A.4)
As terms are constant and independent from fixed-point data formats, the new output noise power becomes:
(A.5)
By expressing the noise power in dB, the following expression is obtained
(A.6)
This expression demonstrates the assumption that the increase of bits of all fixed-point data formats increases the noise level of .
